Gersan | 90° Flat Bend Cover Radius 450

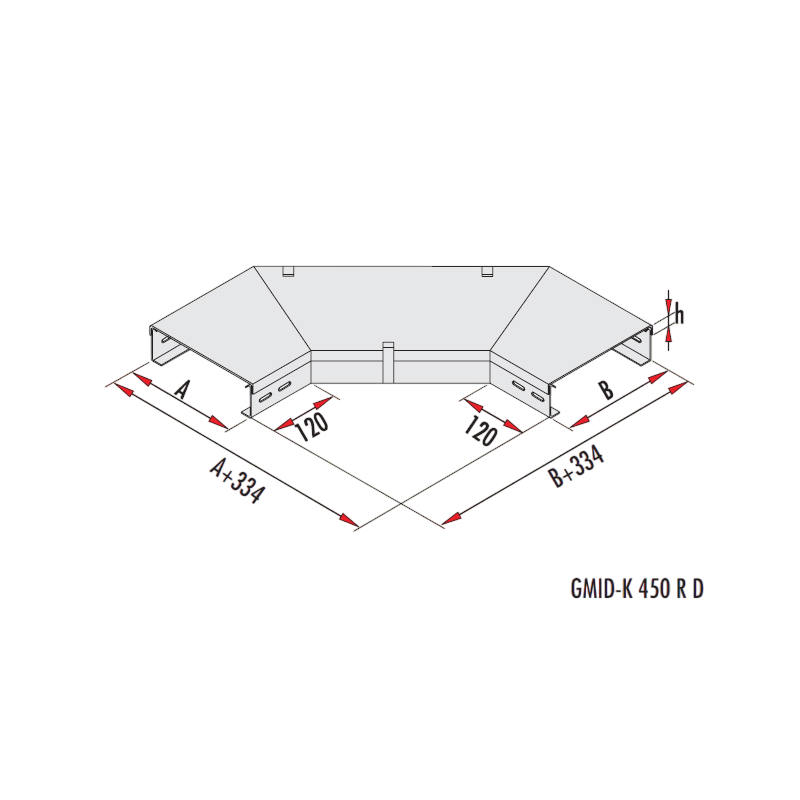

90° Flat Bend Cover Radius 450

Coating: TS 914 EN ISO-1461 (BS-EN-ISO-1461) Hot Dip Galvanized

These products can be produced from made of Pregalvanized, CORTEN-A, Aluminium and 304-316 (SS 304-316) quality steel sheet optionally.

Technical Catalog

Gallery

Reach the world’s quality brands seamlessly with Gersan quality.

Technical Specifications

Order Code Stock Code A (mm) B (mm) e (mm) h (mm) Weight (Kg/unit)
GMID-10K 450R D 1216410019140 100 100 1 9 1,100
GMID-20K 450R D 1216420019140 200 200 1 9 1,500
GMID-30K 450R D 1216430019140 300 300 1 9 2,500
GMID-40K 450R D 1216440019140 400 400 1,5 9 5,500
GMID-50K 450R D 1216450029140 500 500 1,5 9 7,600
GMID-60K 450R D 1216460029140 600 600 1,5 9 10,200
