Gersan | End Cap

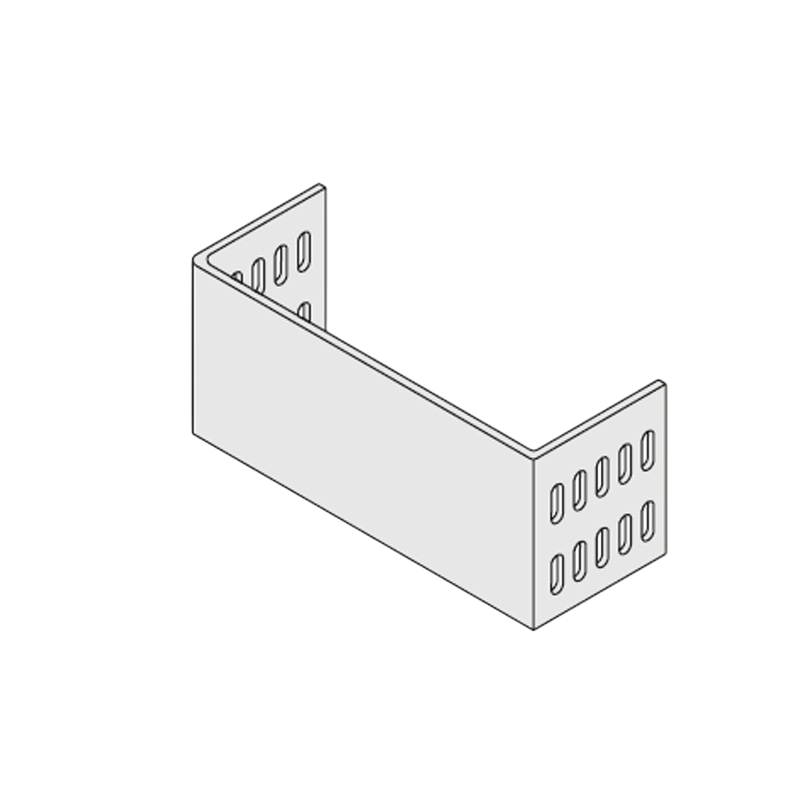

End Cap

Coating: TS 914 EN ISO-1461 (BS-EN-ISO-1461) Hot Dip Galvanized

These products can be produced from made of Pregalvanized, CORTEN-A, Aluminium and 304-316 (SS 304-316) quality steel sheet optionally.

Technical Catalog

Gallery

Reach the world’s quality brands seamlessly with Gersan quality.

Technical Specifications

Order Code Stock Code A (mm) h (mm) e (mm) Weight (kg/unit)
G-SON-C10D 1306C10029140 102 100 1,5 0,400
G-SON-C20D 1306C20029140 202 100 1,5 0,500
G-SON-C30D 1306C30029140 302 100 2 0,850
G-SON-C40D 1306C40029140 402 100 2 1,000
G-SON-C50D 1306C50029140 502 100 2 1,150
G-SON-C60D 1306C60039140 602 100 2 1,300
