Gersan | Recessed Luminaires

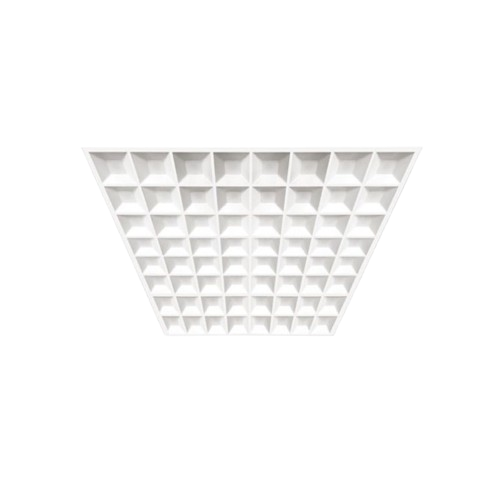

Recessed Luminaires

  • Electrostatic powder-coated DKP sheet metal body
  • High-transmittance satin PS opal diffuser
  • UV-resistant ABS plastic protection
  • Input voltage: 220–240 V, 50–60 Hz
  • Operating temperature: -20°C / +45°C
  • DALI, SwitchDIM, and Emergency Kit options
Technical Catalog

Gallery

Reach the world’s quality brands seamlessly with Gersan quality.

Technical Specifications

Product Code Power (W) Lumen (lm/W) CRI Color Temperature Dimensions (mm)
A1 A2 L1 L2 H
LED-BUS LDB-PNT303009 9 1170 130 80 3000-4000-5000-6000 275 275 297 297 67,4
LED-BUS LDB-PNT306018 18 2340 130 80 3000-4000-5000-6000 275 575 295 595 67,4
LED-BUS LDB-PNT606036 36 4680 130 80 3000-4000-5000-6000 575 575 595 595 67,4
LED-BUS LDB-PNT3012036 38 4680 130 80 3000-4000-5000-6000 275 1175 295 1195 67,4
