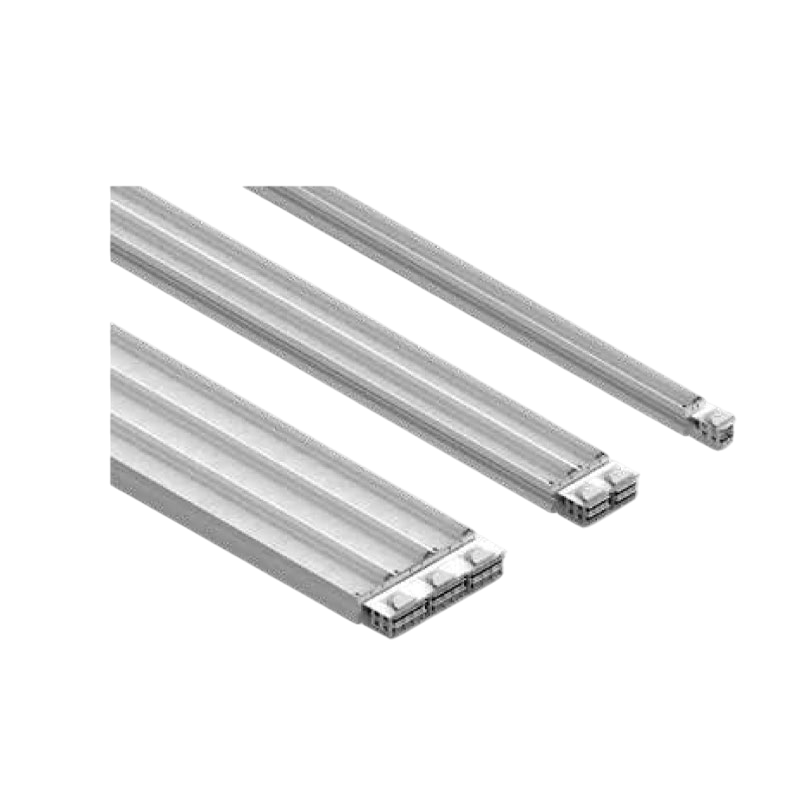

Gersan | Standard Length Element (Plug-in) 3P+N+1/2 Pe

Standard Length Element (Plug-in) 3P+N+1/2 Pe

Housing of the busbars consists of aluminium covers and Polyester or Polyester+Epoxy Film insulation material coated bars.

IP55 protection is standard.

Technical Catalog

Gallery

Reach the world’s quality brands seamlessly with Gersan quality.

Technical Specifications

Order Code Stock Code Ampher weight (Kg/mt)
GSAP 050104 980104005524051 400 9.15
GSAP 050105 980105015524051 500 9.15
GSAP 050106 980106315524051 630 9.15
GSAP 050108 980108015524051 800 9.15
GSAP 050110 980110015524051 1000 10.78
GSAP 050112 980112515524051 1250 12.70
GSAP 050117 980117005524051 1600 19.40
GSAP 050120 980120015524051 2000 25.08
GSAP 100226 980126005524051 2500 36.06
GSAP 100231 980131005524101 3200 38.45
GSAP 100241 980141005524101 4000 49.94
GSAP 150350 980150005524151 5000 74.48
GSAP 200460 980160005524201 6300 95.82
GSCP 050104 990104005514052 400 17.08
GSCP 050105 990105015514052 500 17.08
GSCP 050106 990106315514052 630 17.08
GSCP 050108 990108015514052 800 17.08
GSCP 050110 990110015514052 1000 17.08
GSCP 050112 990112515514052 1250 20.54
GSCP 050116 990116015514052 1600 25.97
GSCP 050120 990120015514052 2000 37.30
GSCP 100225 990125005514102 2500 51.65
GSCP 100232 990132005514102 3200 74.60
GSCP 100242 990142005514102 4000 86.01
GSCP 150350 990150015514152 5000 112.18
GSCP 150360 990160005514152 6300 169.93
