Gersan | T Connection Cover

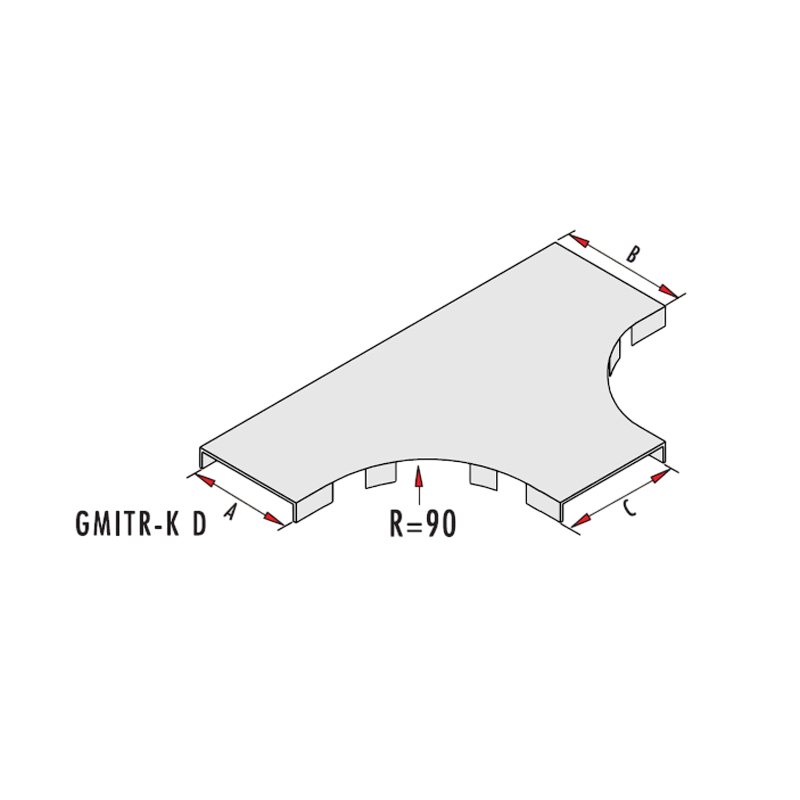

T Connection Cover

The connection elements can optionally be manufactured with a radius of 150, 300, 450, 600, or 900.

Coating: TS 914 EN ISO-1461 (BS-EN-ISO-1461) Hot-Dip Galvanized.
These products can optionally be manufactured from Pre-Galvanized Steel, Corten-A, Aluminum, or Stainless Steel in 304–316 (SS 304–316) grades.

Technical Catalog

Gallery

Reach the world’s quality brands seamlessly with Gersan quality.

Technical Specifications

Order Code Stock Code A-B-C
mm
e
mm
Weight (Kg/unit)
GMITR-10K D 1217R01029140 100 1 0.720
GMITR-20K D 1217R02029140 200 1 1.470
GMITR-30K D 1217R03029140 300 1 2.380
GMITR-40K D 1217R04029140 400 1,5 5.190
GMITR-50K D 1217R05029140 500 1,5 7.020
GMITR-60K D 1217R06029140 600 1,5 8.230
